EDGE Series Smart Ventilation & Climate Control Kit

Name: EDGE Series Smart Ventilation & Climate Control Kit
Brand: Active Grow
Price: 261.95 EUR
Availability: InStock

One connected system for airflow, climate, and grow light control - built for grow tents and controlled growing spaces.

Automated Climate Response · Exhaust + Circulation · Grow Light Integration · App Monitoring

Quantity

Free US shipping

Easy returns within 30 days

1 Year Warranty

One System. Complete Climate Control.

Most ventilation kits give you a fan. EDGE gives you a system.

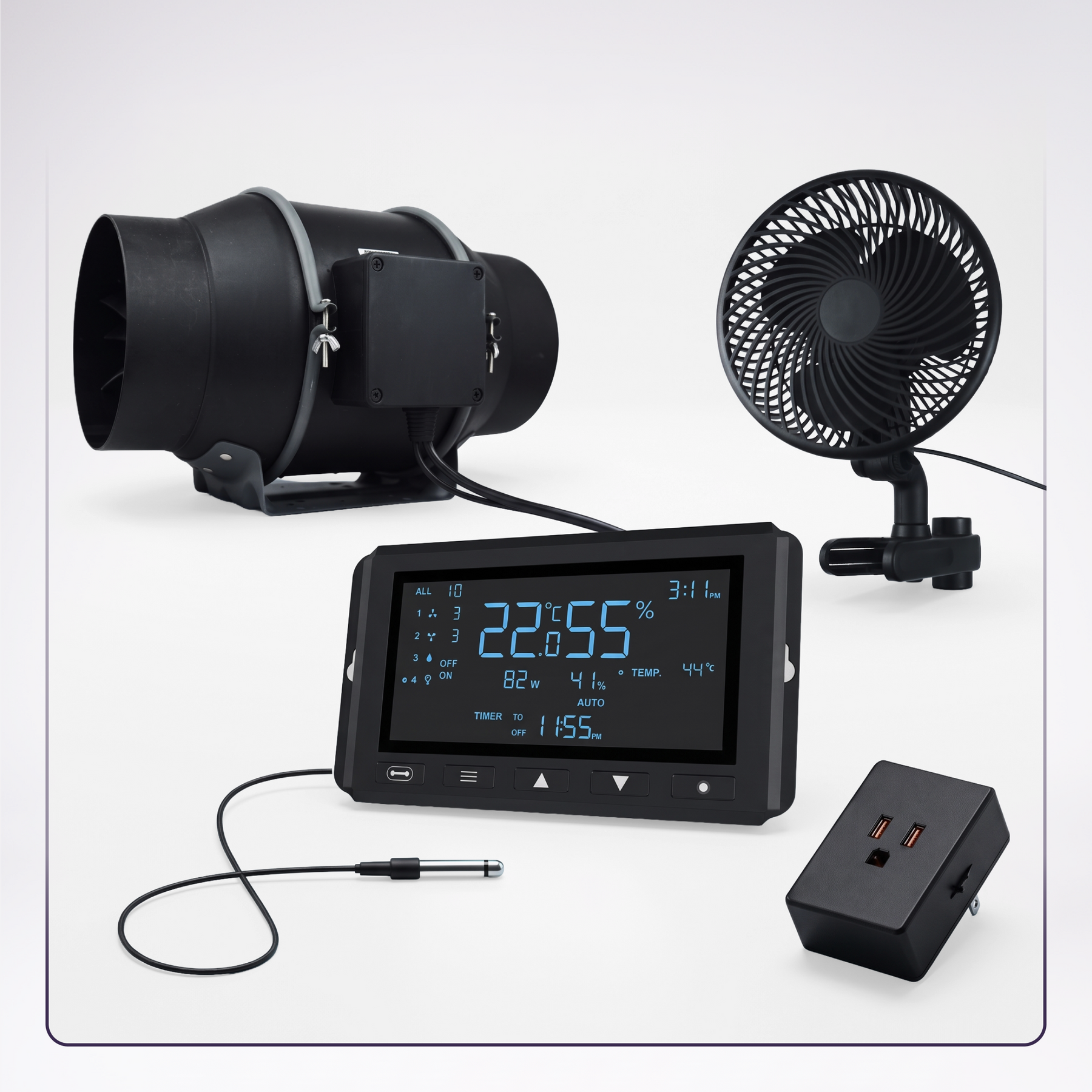

The EDGE Controller connects your inline fan, circulation fan, smart outlet, and compatible grow light into one automated environment - monitoring temperature and humidity in real time and adjusting airflow and lighting to match.

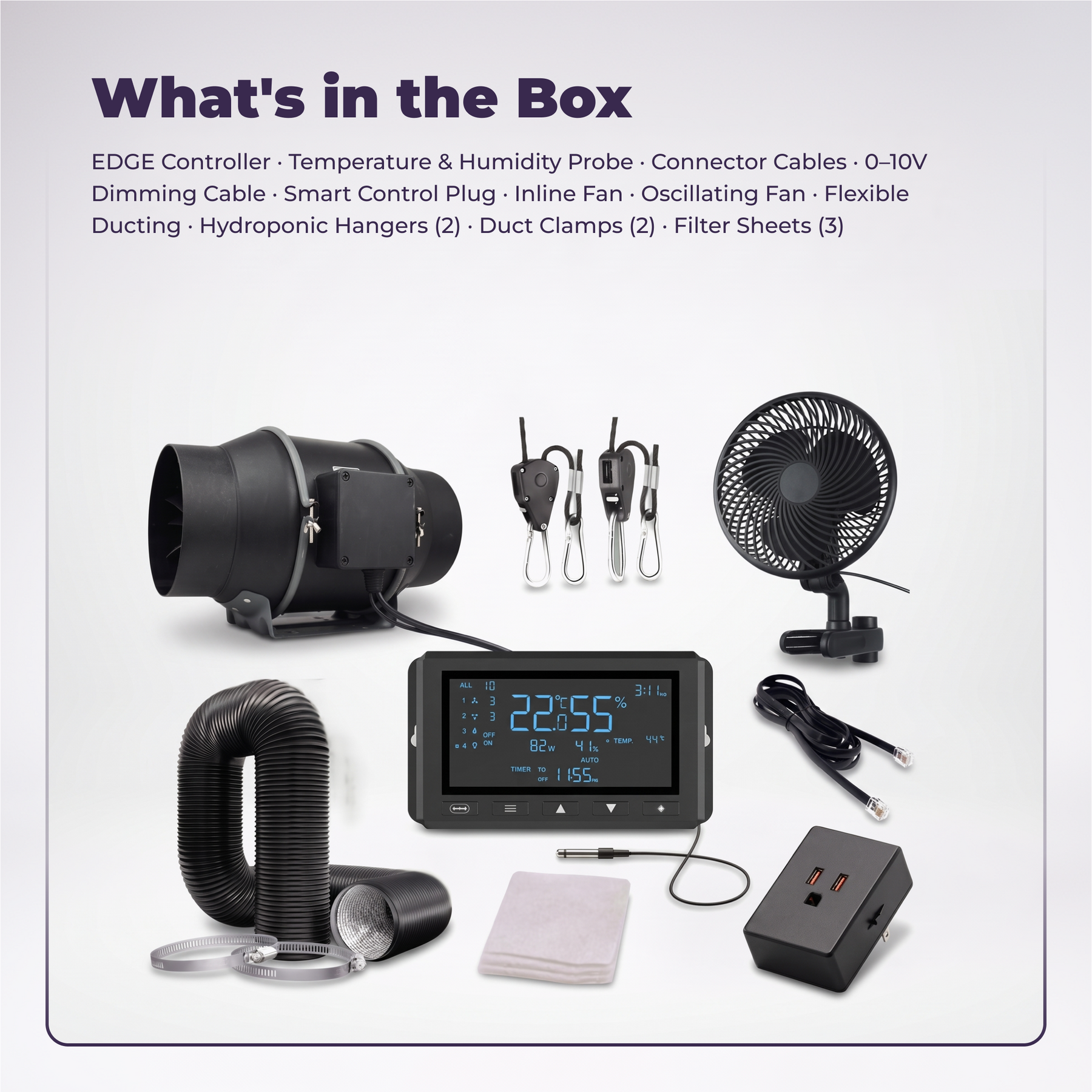

EDGE Controller — the central hub controlling lighting, airflow, and connected equipment from one interface
Temperature & Humidity Probe — continuously monitors your grow space for automated control
EDGE Inline Fan — programmable exhaust ventilation, 10 speed levels
EDGE Oscillating Fan — adjustable air circulation with 45° or 90° oscillation
Smart Control Plug — adds on/off control for compatible outlet-powered equipment
0–10V Dimming Cable — connects compatible dimmable LED grow lights to the controller
Connector cables — link every EDGE device to the controller
Flexible ducting
Hydroponic hangers (2) — for suspending the inline fan
Duct clamps (2)
Filter sheets (3) — help reduce dust, pollen, and airborne particles

This kit does not include a carbon filter or a humidifier. Need active humidity control? See the EDGE Humidification Kit below.

From box to fully connected system - watch the full setup, start to finish.

Active Grow proudly participates in the 1% for the Planet® program and donates 1% of all annual sales to organizations that promote sustainable agricultural practices.

How It Works

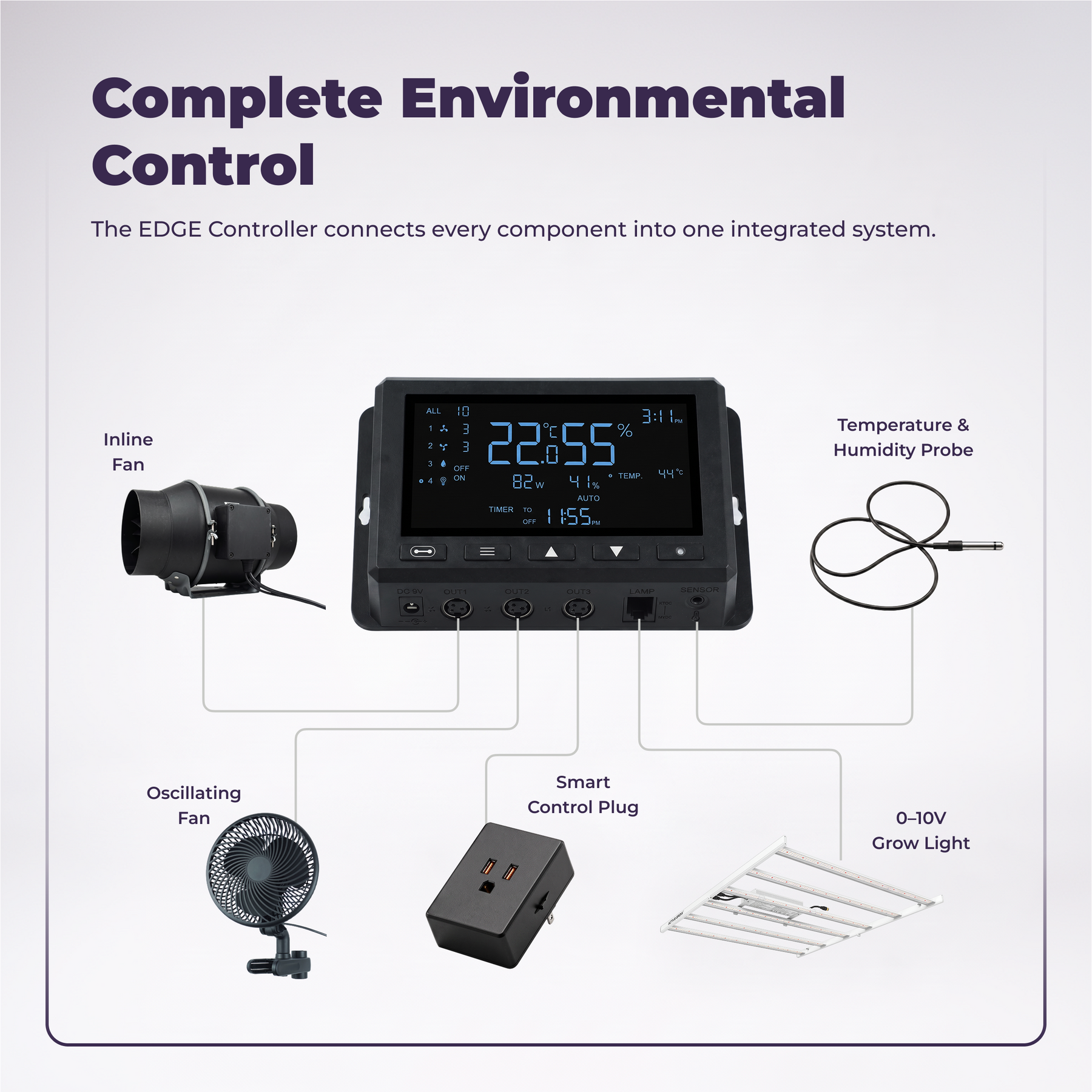

The EDGE Controller is the hub. Every device connects to a dedicated port, and the controller reads live conditions from the probe to decide what happens next.

Port	Connects To
DC	Powered automatically by any connected EDGE device — no separate power adapter needed
OUT1	Inline Fan
OUT2	Oscillating Fan
OUT3	Smart Control Plug
LAMP	Compatible 0–10V LED grow light
SENSOR	Temperature & Humidity Probe

Each channel can run independently — Off, On (fixed speed/output), Auto (responds to your temperature/humidity targets), Timer (scheduled), or Cycle (varies automatically for more natural air movement) — or you can control every channel at once in ALL mode.

Climate Monitoring, Automated

The included probe reads temperature and humidity continuously. Set your targets, and the EDGE Controller adjusts airflow automatically — no manual checking, no guessing.

Ventilation + Circulation, Working Together

Exhaust ventilation exchanges stale air for fresh air. Circulation keeps that air moving evenly across your canopy. EDGE runs both together, so your grow space doesn't just get fresh air — it gets even air.

Two Ways to Control Your Lighting

Smart Control Plug: simple on/off control for compatible outlet-powered equipment — grow lights, humidifiers, and more.
0–10V Dimming: for compatible dimmable LED grow lights (RJ11 dimming port), EDGE controls output level directly — including automatically reducing light output if temperatures climb too high.

Not all grow lights support 0–10V dimming — check your fixture for an RJ11 dimming port before relying on this feature.

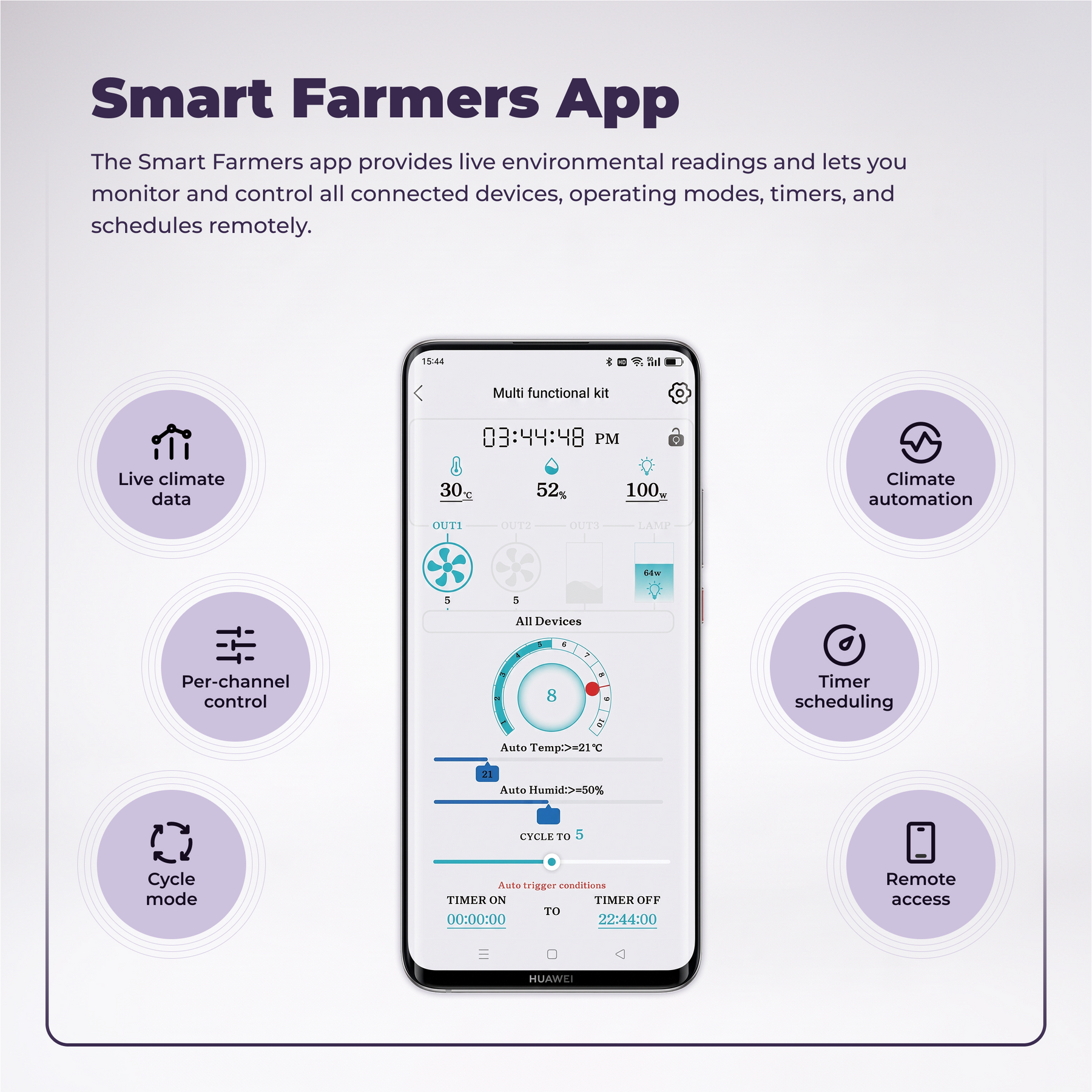

Monitor and Control From Anywhere

The free Smart Farmers app gives you live readings and remote control of every connected device, mode, and schedule — from wherever you are.

Specifications

System / Controller

Channels	6 ports: DC, OUT1, OUT2, OUT3, LAMP, SENSOR
Interface	Five-button keypad with display
Power input	Powered through a connected EDGE device — no separate power adapter required
Dimensions & weight	6.3" × 3.54" × 1.18" (160 × 90 × 30 mm) / 0.57 lb (260 g)

Inline Fan

Motor	DC motor, 10 speed levels
Power supply	100–240V AC, 50/60Hz
Max airflow & speed	405 CFM · 3000 RPM
Max noise	31 dBA

Oscillating Fan

Motor	DC motor, 10 speed levels
Power supply	100–240V AC, 50/60Hz
Max airflow & speed	280 CFM · 2500 RPM
Max noise	23 dBA
Oscillation	45° or 90°

Lighting Compatibility

Dimming	0–10V, RJ11 connector
Compatible fixture power	Up to 1500W
Smart Control Plug	On/off control only — not for use with 0–10V dimming

Sensor

Probe accuracy	±1°C, ±1% RH

Connectivity

App	Smart Farmers app (iOS/Android)
Connection	Bluetooth for initial pairing, 2.4 GHz Wi-Fi for ongoing use (5GHz not supported)

Warranty

Coverage	1 year from purchase — manufacturing defects in materials and workmanship

FAQs

No. The kit includes filter sheets to help reduce dust and airborne particles, but not a dedicated carbon filter for odor control.

No. The EDGE Controller can respond to humidity by adjusting ventilation, and its Smart Control Plug can switch a connected humidifier on/off based on your humidity target — but for dedicated, precise automatic humidity regulation, pair this kit with the EDGE Humidification Kit.

In Auto mode, each connected channel reacts to the targets you set - increasing fan speed, adjusting light output, or switching connected equipment on or off as conditions change.

Yes, two ways. The Smart Control Plug gives any compatible light on/off control. For dimming, a compatible 0–10V LED grow light with an RJ11 port connects directly to the controller's LAMP channel for full output control - including automatic dimming if temperatures rise too high.

It's a wired control standard that lets a compatible fixture's output be adjusted directly by the controller, rather than just switched on or off. Not all grow lights support it - check for an RJ11 dimming port on your fixture.

Yes - EDGE is designed to integrate well with Walden White tents, and is also compatible with most similarly sized grow tents.
